RegisterDisplayInfo

This element indicates how to show register data in the Itron Analytics Customer Portal. The Itron Analytics Customer Service module uses the configuration to make values appear in Itron Analytics the same way they are displayed on the meter. If this value is not provided, Itron Analytics uses a combination of the NumberOfDials and Unit to determine how to display the register value.

This element is intended mainly for use with mechanical water meters.

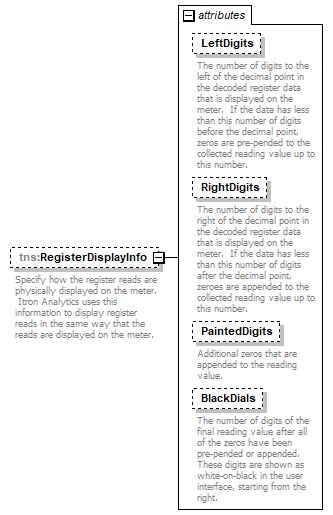

Diagram

Properties

  • isRef: 0
  • minOcc: 0
  • maxOcc: 1
  • content: complex

Use

Collection Manager

Optional

Performance Manager

Optional

Itron Analytics

Optional

ChoiceConnect Fixed Network

Optional

Attributes
