TransformerAttributes

Defines transformer-specific attributes, such as Rating KVA, HighSideVoltage, LowSideVoltage, Phase, NumberOfPhases, Type, and Model.

Note: If distribution equipment hierarchies are already configured in App Platform, then changing the values for this attribute and re-importing the DEH file may affect some existing system data. For more information, see Reconfiguring DEH hierarchies and phase mappings in App Platform.

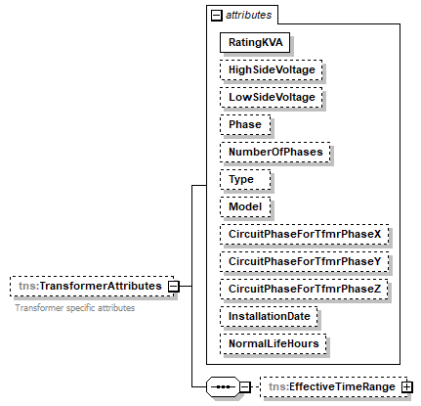

Diagram

Properties

  • isRef: 0
  • minOcc: 0
  • maxOcc: 1
  • content: complex

Use

Optional

Children

EffectiveTimeRange

Attributes
