SetParentEquipment

Sets a parent piece of equipment in the hierarchy of power flow through the distribution system. The possible relationships are restricted; for example, the parent of a service point must be a transformer.

Note: If distribution equipment hierarchies are already configured in App Platform, then changing the values for this attribute and re-importing the DEH file may affect some existing system data. For more information, see Reconfiguring DEH hierarchies and phase mappings in App Platform.

Table 10

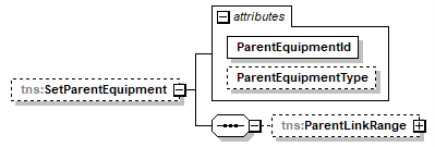

Diagram

Diagram of set parent equipment hierarchy

Properties

  • isRef: 0
  • minOcc: 0
  • maxOcc: 1
  • content: complex

Use

Required

Note: If this element is already defined in the database, it is not required in subsequent updates.

Children

ParentLinkRange

Attributes
