Port Connectivity Verification

To verify port connectivity from IMS to other applications and other applications to IMS (see Required Ports), perform the following procedure:

1. Open PowerShell in Administrator mode.

2. Run the following command to verify port connectivity from IMS to each UIQ application:

   Test-NetConnection -ComputerName [Host Name] -Port [Port Number]

The following examples illustrate port verification for each UIQ application:

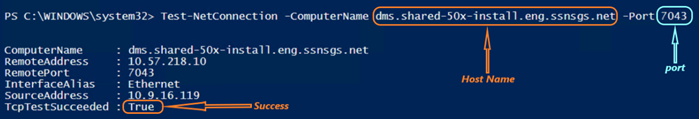

• DMS port verification

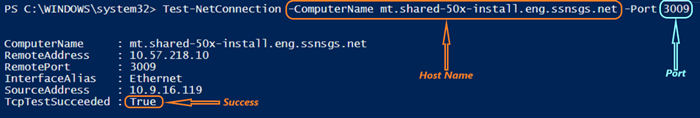

• AMM port verification

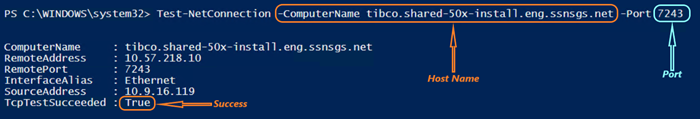

• JMS port verification
