ResponseBase

IEE services all return a single response element, and in most cases this element inherits from ResponseBase.

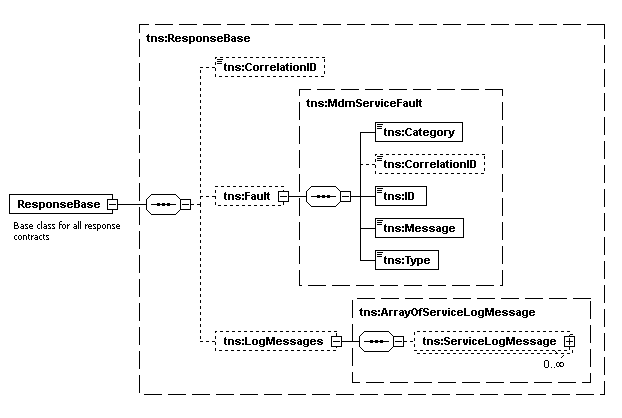

The following illustration shows the ResponseBase element schema:

The following is a list of ResponseBase elements:

• CorrelationID. Gets or sets a value that can be used to correlate a request, response, and/or fault. This property is used to match a request and a response.

• Fault. Fault information that is returned in the service operation fails. If a fault occurs, it is returned in element only if the ReturnFaultInResponse element in the request is set to True. Otherwise, the fault is returned as a SOAP fault.

• Category. The category of the fault. Faults are grouped into general categories such as "IDNotRecognized."

• CorrelationID. The CorrelationID that was passed in the request is reflected in this element. This is useful then the fault is returned as a SOAP fault.

• ID. Identifies the message.

• Message. The text of the message.

• Type. The general type of fault. The valid values are as follows:

• AccessViolation. A security error occurred.

• InvalidParameter. The request failed initial validation.

• ApplicationException. A business logic error occurred.

• SystemException. A system problem occurred (for example, a database error).

• LogMessages. A collection of ServiceLogMessage elements. ServiceLogMessages are messages of varying severity that are logged during the execution of the service call.

ServiceLogMessage has the following sub-elements:

• Category. The category of the message.  Messages are grouped into general categories such as "IDNotRecognized."

• ID. The specific identifier of the message.

• Message. A text description of the message.

• Severity. The severity of the message. Possible values are CriticalError, Error, Warning, Information, Debug and Trace.

• Source. Indicates the subsystem where the message originated.
