Route area type code table

The route area type code table defines values for the area covered by a route. Examples of possible values include rural, city and suburb.

Use the following procedure to configure the Route Area Type Code Table:

  1. Go to System Administration > System Admin > Code Table Setup.

  2. From the Code Table Selection list, select Route Area Type.

  3. Use the Number of rows to insert on add dropdown menu to select the number of blank rows to add to the code table.

  4. From the Code Table Setup menu, click Add. The new rows appear in the table.

  5. Click to select each blank row added and configure the following parameters:

    • ID. Enter an ID such as City. This value appears in dropdown menus throughout the IEE rich client.

    • Description. This text provides a more detailed description for the ID, for example "Population greater than 100,000."

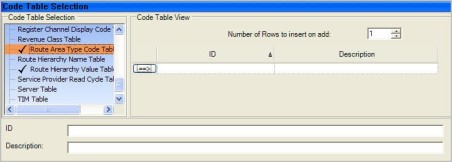

      The route area type option selected on the code table selection tab.

  6. Click Save.

Tip: After updating any code table, you must restart the IIS service for the changes to take effect.
