Device event partitioning (Optional)

Device event partitioning is optional. The following scripts are included and executed with the installation and upgrade process.

• DevEvtP7n_AddMonth.sql

• DevEvtP7n_Migrate_Data.sql

Configuring device event partitioning

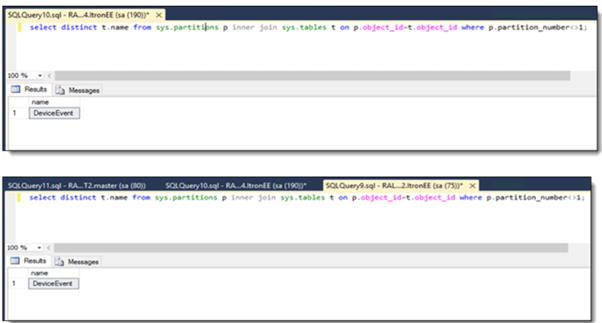

1. Run the following query to check for existing partitioning:

   Select * from sys.partitions p

   inner join sys.tables t on p.object_id=t.object_id

   where p.partition_number<>1 and t.name = 'DeviceEvent';

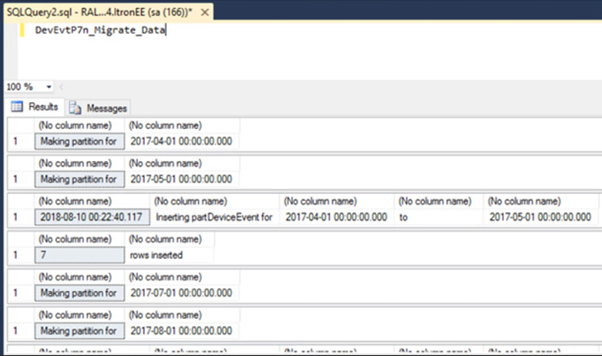

2. Run the following command:

   DevEvtP7n_Migrate_Data



3. Run the following query to verify the partitioning:

   Select * from sys.partitions p

   inner join sys.tables t on p.object_id=t.object_id

   where p.partition_number<>1 and t.name = 'DeviceEvent';

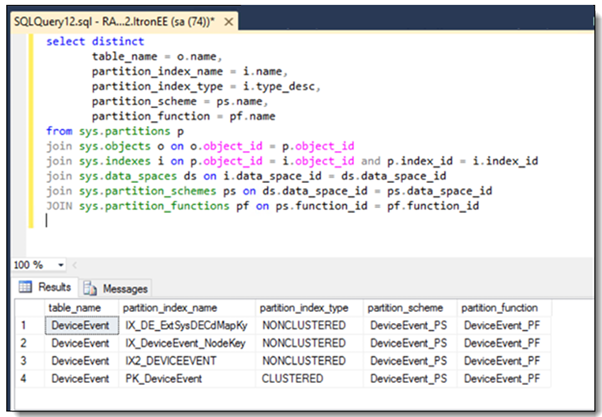

4. Run the following query to view the partition details:

   Select distinct table_name = o.name,

   partition_index_name = i.name,

   partition_index_type = i.type_desc,

   partition_scheme = ps.name, partition_function = pf.name

   from sys.partitions p

   join sys.objects o on o.object_id = p.object_id

   join sys.indexes i on p.object_id = i.object_id and p.index_id = i.index_id

   join sys.data_spaces ds on i.data_space_id = ds.data_space_id

   join sys.partition_schemes ps on ds.data_space_id = ps.data_space_id

   JOIN sys.partition_functions pf on ps.function_id = pf.function_id

   where o.name = 'DeviceEvent';

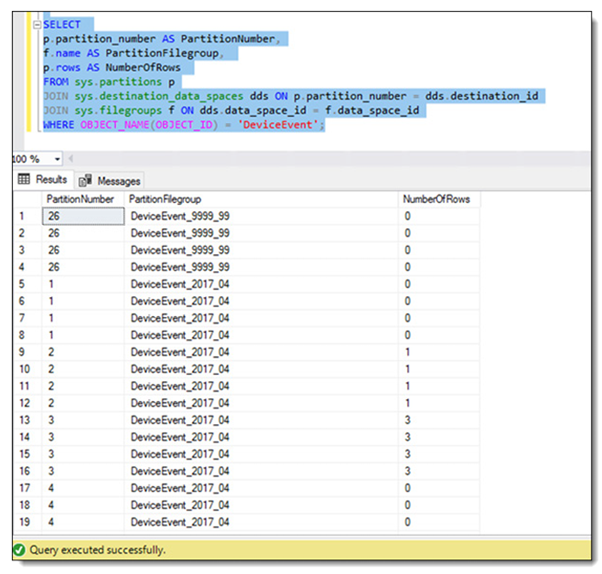

5. Run the following command:

   SELECT p.partition_number AS PartitionNumber, f.name AS PartitionFilegroup, p.rows AS NumberOfRows FROM sys.partitions p JOIN sys.destination_data_spaces dds ON p.partition_number = dds.destination_id JOIN sys.filegroups f ON dds.data_space_id = f.data_space_id WHERE OBJECT_NAME(OBJECT_ID) = 'DeviceEvent';
