Response processing

The response process moves the collected meter readings from IEE to the billing system. It includes two IEE adapters:

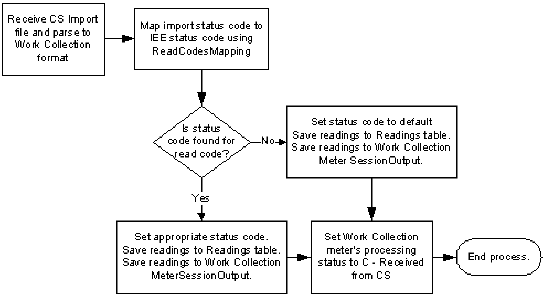

  • IEE Collection System Import Adapter. This adapter receives import files from collection systems and save the reading data to the IEE Reading and ClosedWork Collection schema. For more information, see ClosedCollection System Import Data Flow.

    The work collection is the portion of the end-to-end process that handles the actual request and response activity. It is also the transient data store.

  • IEE Billing Export Adapter. This adapter prepares billing export files based on data saved in the IEE Reading and Work Collection tables. Billing export files contain any routes, accounts or meters that have complete readings available within the read schedule window. For more information, see ClosedBilling Export Data Flow.

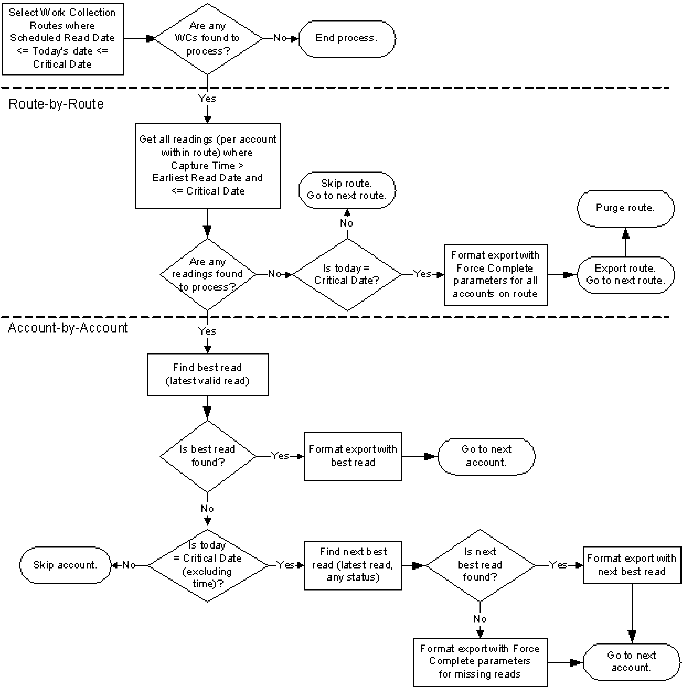

    Billing Export Process GIF
