Service mode cleanup

Use this function to remove any extraneous data left over from IEE Service Mode task processing. Use the Task Scheduler to define the Service Mode Cleanup task to run on a recurring schedule. This ensures the database tables are automatically maintained. Depending on the volume of data collected for a Service Mode system, you should not need to store more than a month of data in Service Mode. The set the recurring task to run on a daily or weekly basis during a time of low activity.

In addition to the Service Mode Cleanup task, you must define a runner type in IEE to run the Service Mode Cleanup task. The Service Mode Cleanup task purges data older than the Cleanup Days task parameter for the following tables:

• Register Data

• Communications Log

• Event Data

• HH Logs

• Task Logs

• xiCOMM Message Logs

• Data Directory and data files

Use the following procedure to remove extraneous data:

1. Go to Meter Data Management >Tools > Data Retrieval > Service Mode Cleanup. The task type defaults to Service Mode Clean Up.

2. Under Task Type, select the Task Template from the dropdown menu. At present, DefaultServiceModeCleanup is the only available template.

   You can also access the Service Mode Cleanup task from Task templates.

3. Under Task specific parameters, Configure the following parameters:

   • Clean Up Days. Enter the number of days for which you want to keep communication remnants.

   • External System. Use the dropdown menu to select the name of the IEE Service Mode System where the cleanup is to be performed.

     Note: The External System is defined in ItronEE ExternalSystem table, which populates the dropdown menu.

4. (Optional) Define the Common Task Template Parameters.

   Some or all of the following parameters display in the Task Template and Task Scheduler windows. The available parameters depend upon the type of task selected.

   Task specific parameters:

   Requested Server

   Defines the server to use to process the task. Select First Available if it does not matter which server processes the task.

   Requested Start Date

   Defines the date and time (hh:mm) to begin processing the task. Click the dropdown arrow to open a calendar.

   Priority

   Defines the task priority (0-99). IEE processes tasks in order of priority. The lower the number, the higher the task priority. Servers process tasks with higher priority (such as 15) before tasks with lower priority (such as 75). Administrators can configure task runners (IEE 6.x) and task services (IEE 7.x and later) to process only tasks with a particular minimum priority.

   Description

   Describes the task template. Enter a unique description if you have added a new task template for the selected task type. Once saved, this description displays in the Task Template dropdown list. To run or modify this task template in the future, select the Task Type and then select this description from the dropdown list. You can create multiple task templates for each task type. It is possible to save multiple task templates with the same description, but Itron recommends using unique descriptions to make it easier to select the correct task template.

   Task Significance

   Defines the reason a particular set of data was exported. Task significance helps distinguish exports run on the same template and the same data but for different reasons. In task templates, the significance parameter typically appears at the top of the window, near the Task Type and Task Template dropdown menus. Select DoNotTrack if you do not need to track an export.

   This parameter applies only to export and aggregation tasks.

   Reschedule Properties

   Allows you to set up a recurring schedule, or to reschedule a failed task to run on a define interval for a certain number of days until it succeeds.

   Recurring Offset

   The Reschedule Recurring Tasks checkbox sets the ApplyOccurrenceOffset task parameter. Valid values are true and false. When true, if the task is running on a recurring schedule, then an offset is applied. Select Days, Hours, or Minutes and enter a value in the offset interval field to define the OffSetType parameter. The interval value you enter and the offset type you select are stored in the OffSetInterval parameter. The OffSetInterval parameter is the number of days IEE must subtract from "today" when a reading arrives without an associated scheduled read date.

   DefaultReadingXmlExport or Custom Report must be selected in System Operations > System Operations > Task Manager > Task Templates >Task Type > Task Template for this parameter to appear.

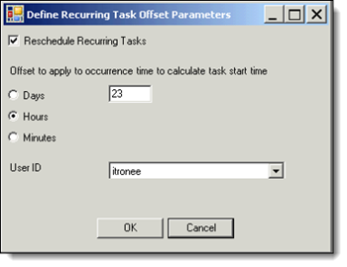

   To accommodate Daylight Saving Time (DST) in the spring, open the Define Recurring Task Offset Parameters dialog (Task Template Parameters > Recurring Offset), select Hours, and enter 23 (for a 24-hour task template) or 11 (for a 12-hour task template). Click OK to close the dialog, make sure that the parameter option Perform and Retrieve Self Read is checked, and click Save.



   To accommodate Daylight Saving Time (DST) in the fall, open the Define Recurring Task Offset Parameters dialog (Task Template Parameters > Recurring Offset), select Hours, and enter 25 (for a 24-hour task template) or 13 (for a 12-hour task template). Click OK to close the dialog, make sure that the parameter option Perform and Retrieve Self Read is not checked, and click Save.



   Disable Data Check

   Determines whether IEE performs validation, editing, and estimation (VEE) on data required by a task. If the value is True, the cycle ignores the data check and automatically schedules the task, regardless of data availability. Select False to run VEE on the data.

   Register Read Cycle (Days)

   Defines a search window for read cycle events. When a data driven read cycle occurs, IEE looks-back this number of days for register data.

   This parameter is related to the use of data driven schedules and only applies when the following data cutoff parameters are selected: Run tasks on data up to the time of occurrence, or Run tasks on data up to the selected time.

   Schedule an Execution Window (Minutes)

   Defines the number of minutes to allow the following actions:

   • Allow the Cycle Scheduler to schedule a task using the schedule occurrence time as the frame of reference.

   • Allow the task system to execute a task using the task’s requested start time as the frame of reference.

5. Click Run.
