Read cycle schedule

This code table defines values for identifying and defining a schedule. This code table also associates a read cycle with the schedule.

Important! You must define read cycles before you can define read cycle schedules.

Configuring the Read Cycle Schedule Code Table

  1. Go to System Administration > System Admin > Code Table Setup.

  2. From the Code Table Selection list, select Read Cycle Schedule Table.

  3. Use the Number of rows to insert on add dropdown menu to select the number of blank rows to add to the code table.

  4. From the Code Table Setup menu, click Add. The new rows appear in the table.

  5. Click to select a row that you added.

  6. Read Cycle ID. Use the dropdown menu to select a read cycle.

  7. In the input fields below the table grid, enter values for each row added.

  8. Press Tab to move to the next row and record the new values in the table.

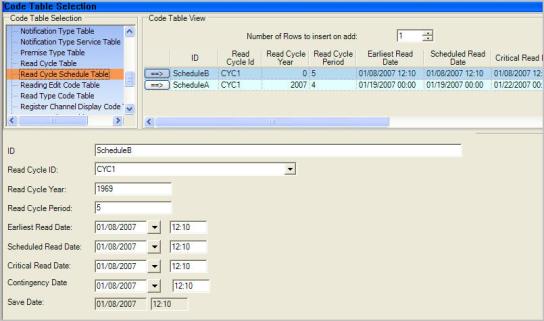

    Navigating the Read Cycle Schedule Table.

  9. Click Save.

Note: After updating any code table, you must restart the IIS service for the changes to take effect.
