Typical one-to-many relationship structure

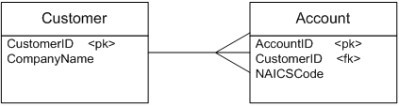

In the absence of time-dependent relationships, the typical database structure is to use a parent/child table structure to represent a one-to-many relationship. The following diagram illustrates that one customer can have many accounts.

One customer can have many accounts diagram.

Customer-to-account example:

In this example, the customer YourCustomer LLP has three accounts: 1000101, 1000201, and 1000301. The following Customer table and Account table represent the relationship between one customer and many accounts.

Customer table

Table 587 Customer table
Customer ID	Company name
100	YourCustomer LLP

Account table

Table 588 Account table
Account ID	Customer ID	NAICS code
200	100	1000101
300	100	1000201
400	100	1000301

Note: Actual Customer and Account tables contain more elements than shown in the examples.

The typical one-to-many relationship described-above, does not exist for time-dependent relationships. It uses a unique NodeKey value to define relationships between configuration nodes in the database. The following section describes and illustrates such relationships in the database.
