Including or excluding a transformer device event from the Alarms KPI

1. On the Electric page, click the Transformer Load Management tab.

   The Device Events for Alarm KPI section lists the transformer device events that are included in the Alarms KPI on the Transformer Load Management page in the Analytics Portal.

2. Click Modify.

3. To add all events to the Alarms KPI, select the All Event Categories checkbox.

   or

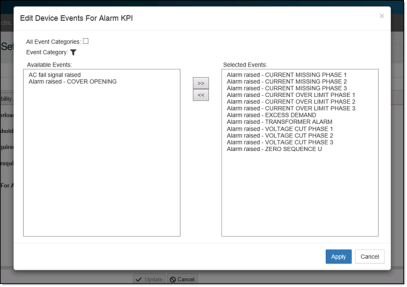

   To add individual events to the Alarms KPI, click Event Category () and then select or clear the event categories that appear in the Available Events list.

   1. Use the arrow buttons to create a Selected Events list that contains the device events you want included in the Alarms KPI.



4. Click Apply

5. Click Update.
