Set SSID

During endpoint configuration, it is necessary to enter a Service Set Identifier (SSID). The SSID identifies one Radio-Frequency Local Area Network (RFLAN) from another so that devices can connect to a specific network. If a device attempts to join a network and the SSID determined during its configuration does not match, the device is not permitted to join the network.

The SSID is configured in your device configuration by a system administrator. Before submitting the SSID, the SSID number must be obtained from Itron and must be in decimal form. To obtain the SSID, call (864)-718-6876.

See the FDM Server Client Guide for more information.

The following multi-mode capable devices support this command:

  • Gas modules:
    • OpenWay Riva 500G ERT Module
    • Intelis Gas Meter
    • OW Riva Intelis 250/425 Gas Meter
    • Intelis 250 Smart Gas Meter
    • Gen5 500G ERT Module

  • Water modules:

    • OpenWay Riva 500W ERT Module
    • Gen5 500W ERT Module
  • Telemetry modules:
    • OpenWay Riva Gas Disconnect (OW-GRD)

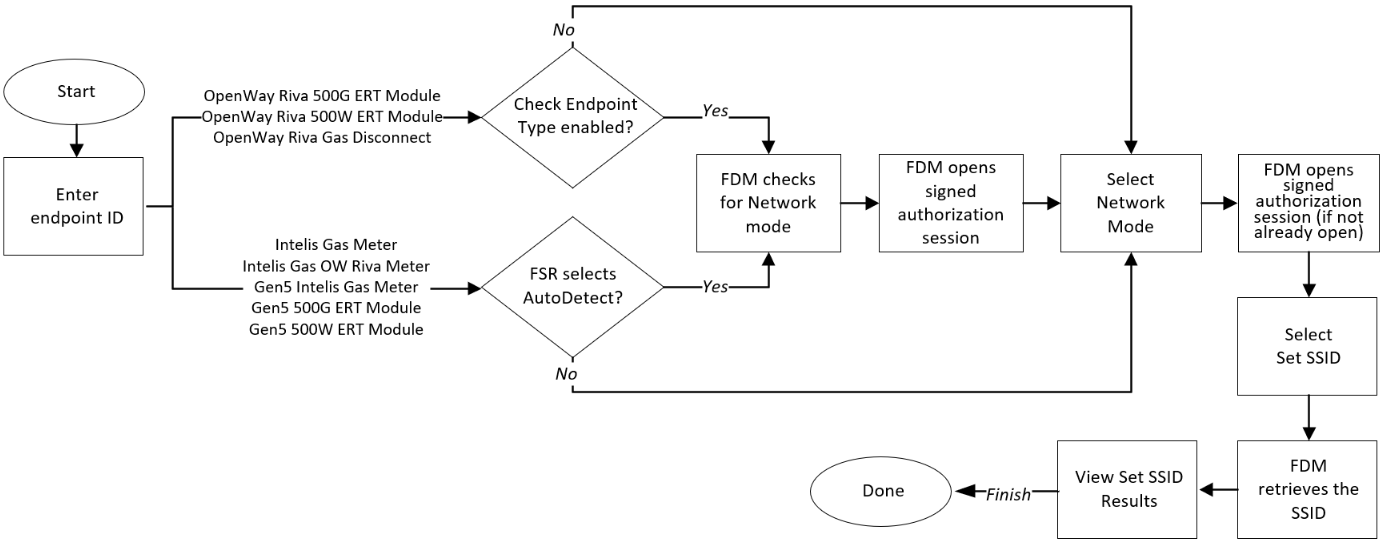

The SSID is automatically set and retrieved. A results screen indicating the set SSID value in a decimal value appears. The following diagram summarizes the procedure:
